3 Axis 3020 Plus CNC Engraving Machine,500W CNC Wood Router Desktop CNC Machine for Metal Wood Acrylic MDF w/Limit Switche Emergency-Stop, Working Area:11.81 * 7.87 * 2.87 inch

Overview

• Brand : YIDOFENG
• Material : Aluminum
• Power Source : ac_dc
• Voltage : 2.2E+2 Volts (AC)
• Maximum Rotational Speed : 1.1E+4 RPM

About this item

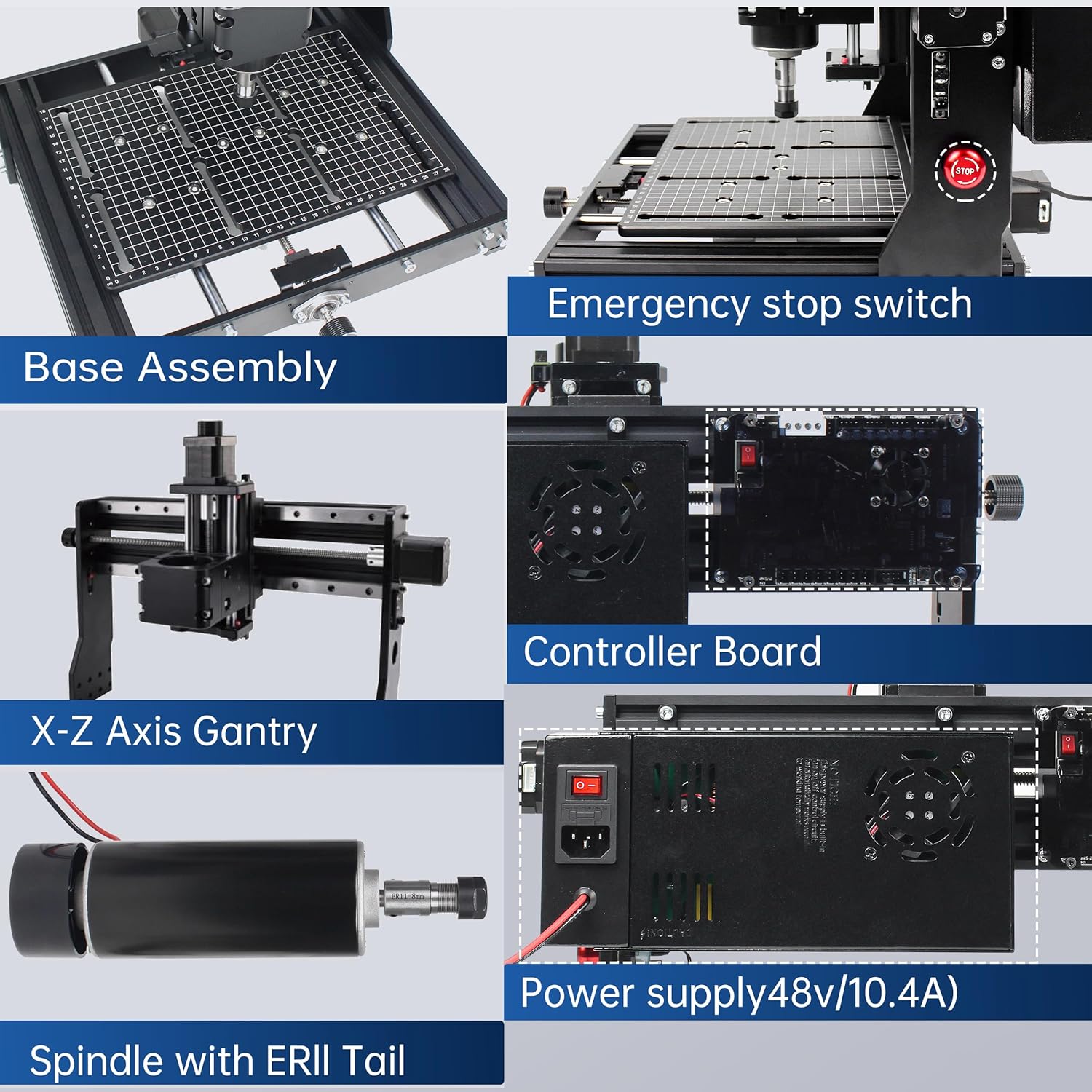

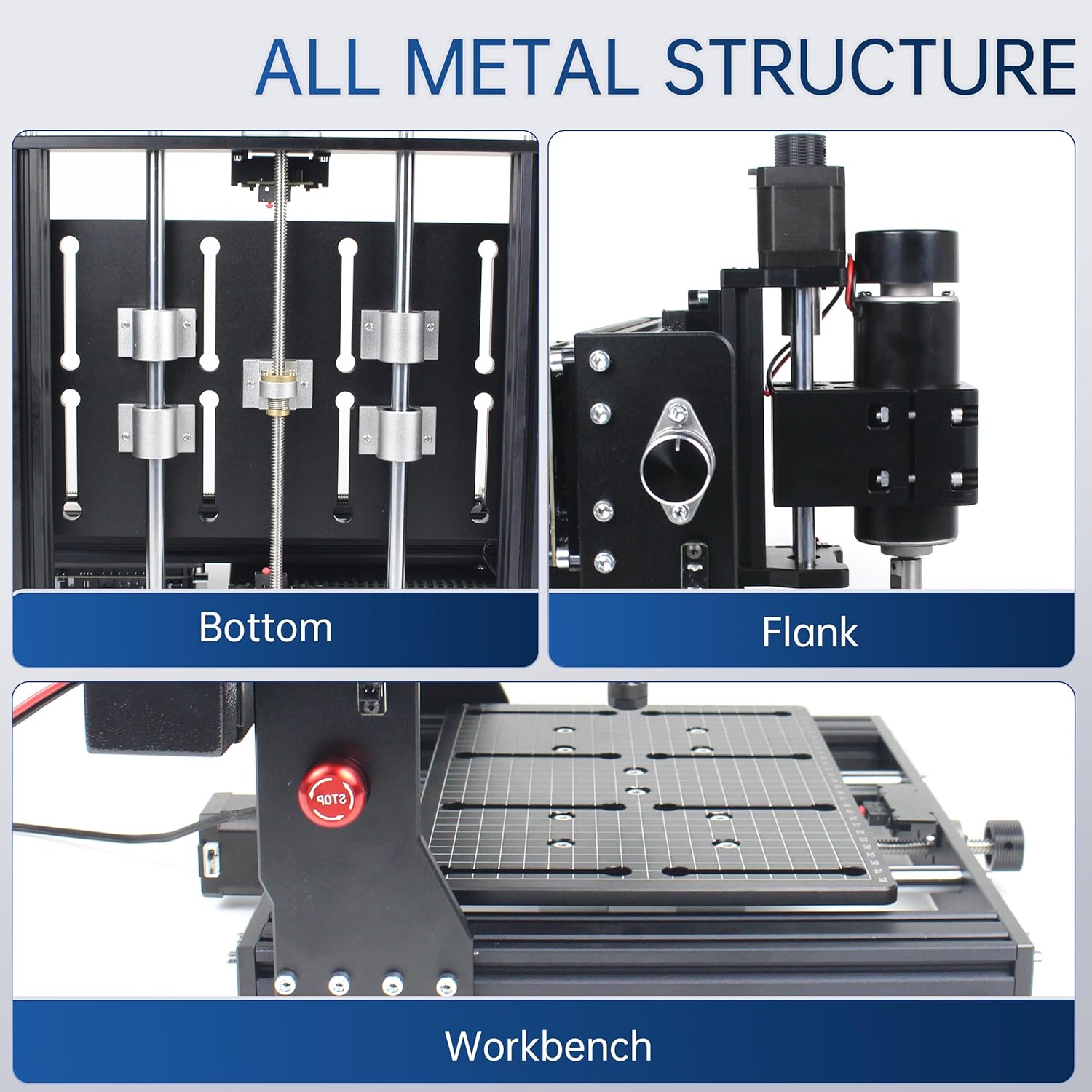

• 【Pure metal structure】3020 PLUS CNC machine is solidly built with all-metal body structure ;Equipped with 12mm thick solid double-steel linear guide rail and bearing slide rail;Stroke of All-metal X-Z axis parts is up to 73mm,make the machine to move faster,with 0.01mm high accuracy and stability.
• 【Spindle】Upgraded 500W 48V 11000rpm 52mm spindle with ER11 collet, more powerful and higher efficiency, making it possible to cut stainless steel,aluminum and other metals;The maximum movement speed is 5000RPM, the spindle speed range is 0-11000RPM

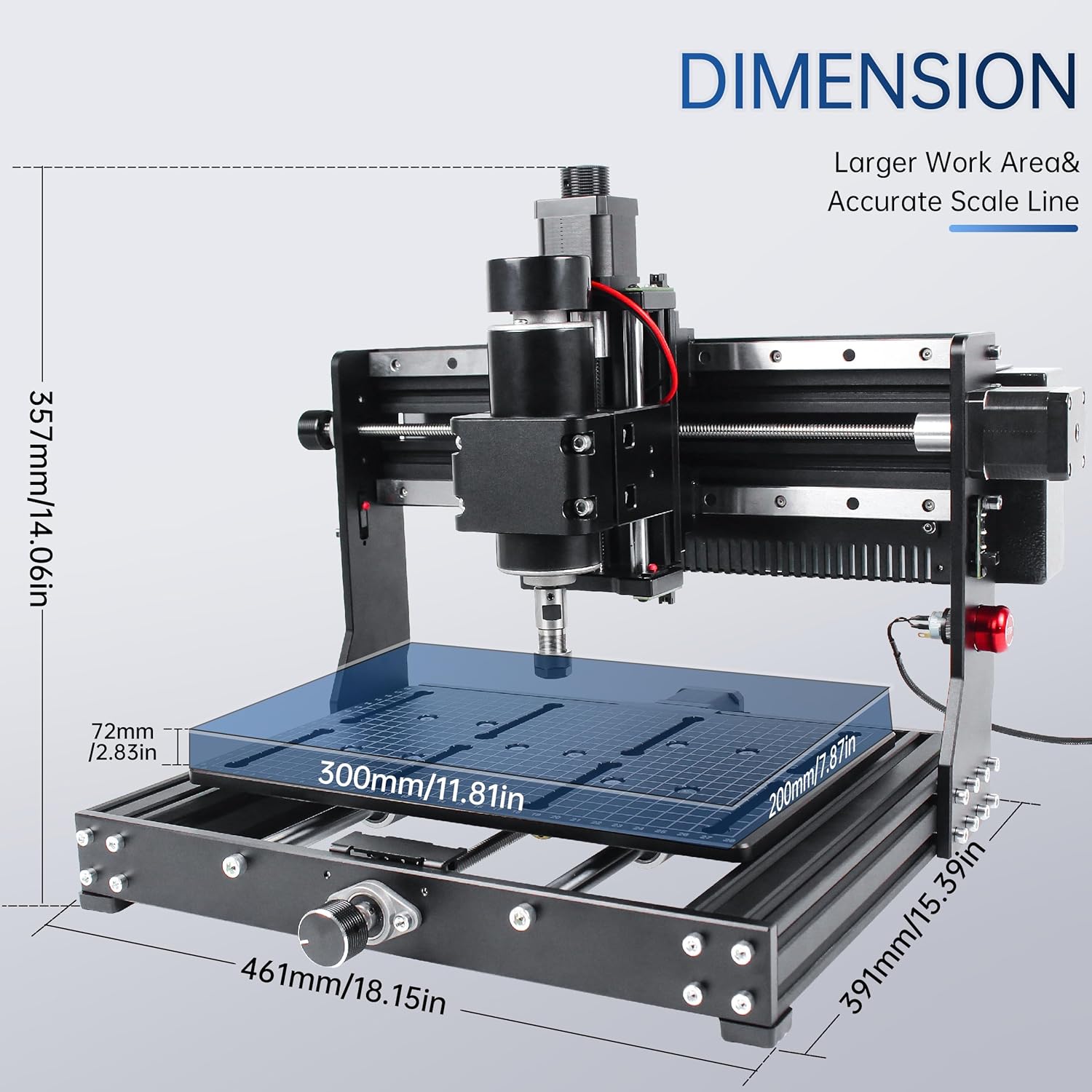

• 【Bigger Working Table】The working table of the 3020-PLUS router vs the 3018-PRO is larger, working area: 300*200*73mm(11.81*7.87*2.87inch),It’s capable to handle both small and large material the working table has precise scale lines and a flat working surface, convenient for you to locate and measure the engraving material size. Emergency stop and 6 limit switches for all-around protection making it more safe to use
• 【Compatibility 】: CNC 3020 engraving machine is compatible with GRBL software/Candle and supports Windows XP/7/8/10 and Linux
• 【 Application material】3020 PLUS CNC machine Can both carve and cut：can cut 8mm wood products at one time；can engrave on MDF, Wood、Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Ceramic products, Food, Bamboo, Plastic, Plywood, Stainless steel, Brass, Plexiglass, Aluminum and so on.

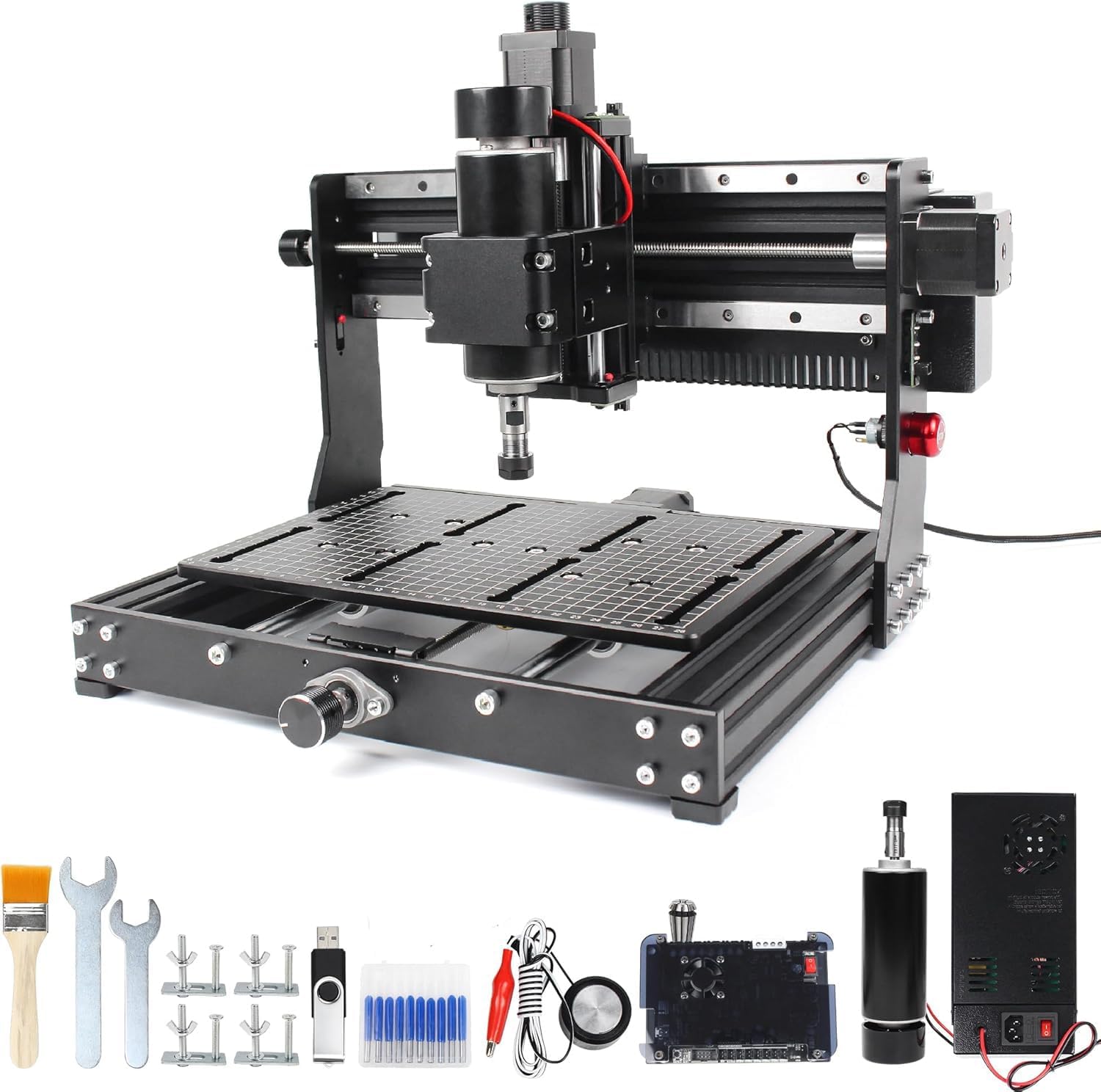

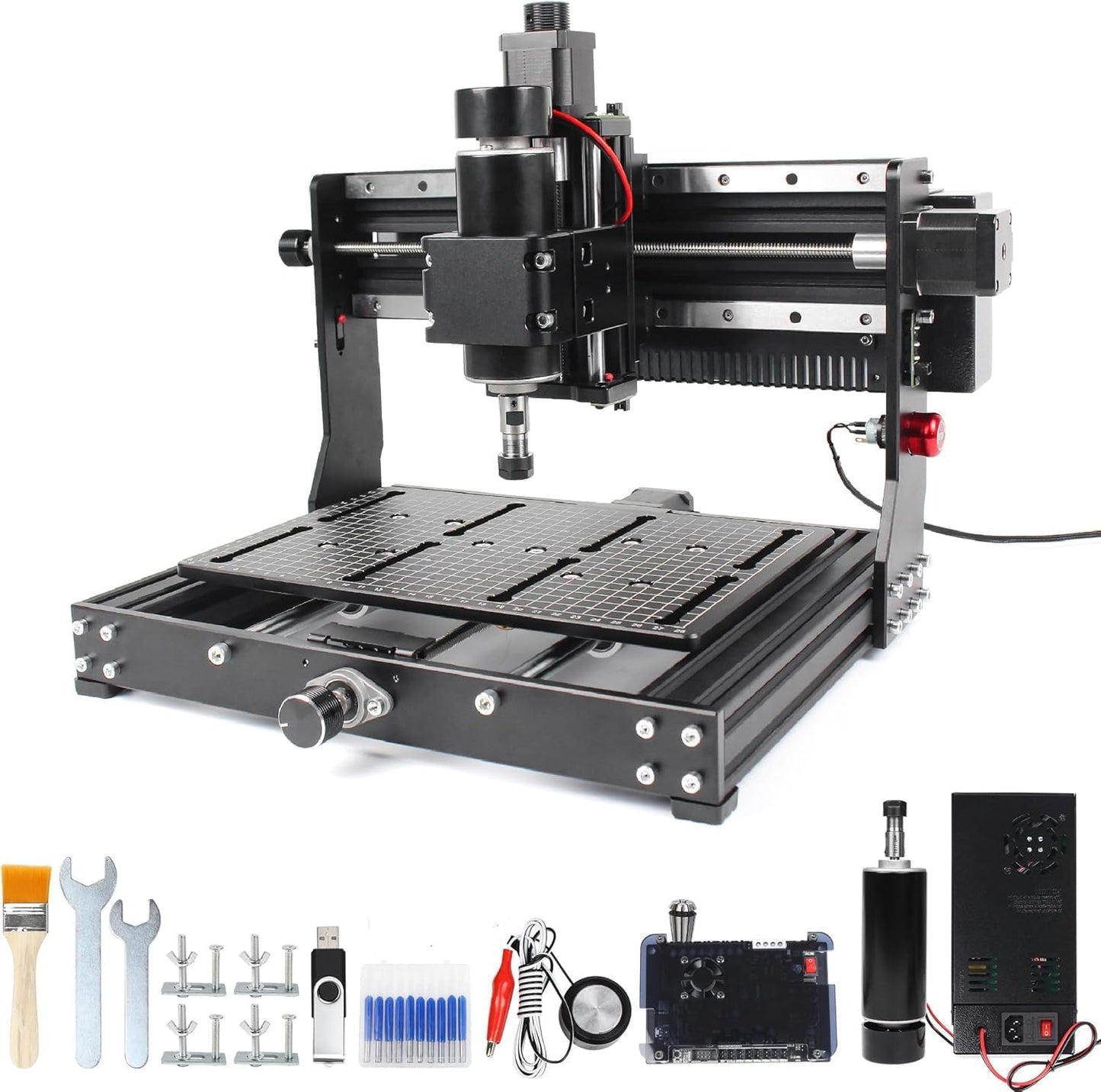

• 【Package include】1PC 3020 Plus cnc router machine + 1PC 500W DC spindle + 1PC Emergency Stop + 6Pcs limit switches board (XYZ both ends) + 1PC Z Axis Probe tool + 1 PC control board + 10Pcs Engraving bits + 1PC 2G U disk with GRBL software + 1PC English User Manual;The device has been pre-assembled and can be simply assembled after unpacking.
• 【AFTER SALES SERVICE】 If you get stuck, Contact us with any questions that arise. Our customer service team is always ready to assist with any questions you may have.
